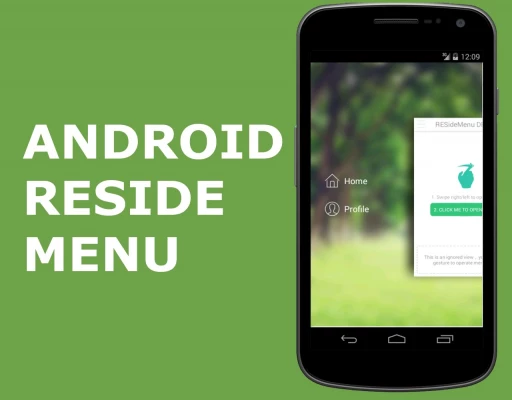

Create 3D Navigation Drawer using Reside menu in the Android application.

Creating New Project

• Create a new project in Android Studio from File ⇒ New Project. When selecting Empty Activity and proceed.
• Add Residemenu dependency to your build.gradle and rebuild the project.

dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'com.android.support:appcompat-v7:27.1.1'
    implementation 'com.android.support.constraint:constraint-layout:1.0.2'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'com.android.support.test:runner:1.0.1'
    androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.1'
    implementation 'com.specyci:residemenu:1.6+'
}

Choosing the Colors

• Open colors.xml located under res ⇒ values and add the below color values.

colors.XML

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="colorPrimary">#3F51B5</color>
    <color name="colorPrimaryDark">#303F9F</color>
    <color name="colorAccent">#FF4081</color>
</resources>

•  Open Style.xml located under res ⇒ values and add the below values.

<resources>

<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
    <!-- Customize your theme here. -->
    <item name="colorPrimary">@color/colorPrimary</item>
    <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
    <item name="colorAccent">@color/colorAccent</item>
</style>

<style name="fragment_text">
    <item name="android:textColor">#ffacacac</item>
    <item name="android:textSize">25sp</item>
</style>

</resources>

Create four XML layouts named main.xml  under res ⇒ layouts.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
              android:background="@android:color/white"
              android:orientation="vertical"
              android:layout_width="match_parent"
              android:layout_height="match_parent">

    <LinearLayout
            android:orientation="vertical"
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:background="@color/colorPrimary"
            android:id="@+id/layout_top">

        <ImageView
                android:layout_width="match_parent"
                android:layout_height="3dp"
                android:background="@color/colorPrimary"/>

        <FrameLayout
                android:layout_width="fill_parent"
                android:layout_height="wrap_content">

            <Button
                    android:layout_width="28dp"
                    android:layout_height="28dp"
                    android:background="@drawable/titlebar_menu_selector"
                    android:id="@+id/title_bar_left_menu"
                    android:layout_gravity="left|center_vertical"
                    android:layout_marginLeft="10dp"/>

            <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:padding="7dp"
                    android:text="Home"
                    android:textSize="24sp"
                    android:textColor="#ffffff"
                    android:layout_gravity="center"/>

            <Button
                    android:layout_width="28dp"
                    android:layout_height="28dp"
                    android:background="@drawable/titlebar_menu_selector"
                    android:id="@+id/title_bar_right_menu"
                    android:layout_gravity="right|center_vertical"
                    android:layout_marginRight="10dp"/>
        </FrameLayout>

        <ImageView
                android:layout_width="match_parent"
                android:layout_height="5dp"
                android:background="#ebebeb"/>

    </LinearLayout>

    <FrameLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            android:id="@+id/main_fragment">
    </FrameLayout>

</LinearLayout>

• Open MenuActivity.java and modify the code as below.

package com.wapptech.menu;

import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentActivity;
import android.support.v4.app.FragmentTransaction;
import android.view.MotionEvent;
import android.view.View;
import android.widget.Toast;
import com.special.ResideMenu.ResideMenu;
import com.special.ResideMenu.ResideMenuItem;

public class MenuActivity extends FragmentActivity implements View.OnClickListener{

    private ResideMenu resideMenu;
    private MenuActivity mContext;
    private ResideMenuItem itemHome;
    private ResideMenuItem itemProfile;
    private ResideMenuItem itemCalendar;
    private ResideMenuItem itemSettings;

    /**
     * Called when the activity is first created.
     */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mContext = this;
        setUpMenu();
        if( savedInstanceState == null )
            changeFragment(new HomeFragment());
    }

    private void setUpMenu() {

        // attach to current activity;
        resideMenu = new ResideMenu(this);
//        resideMenu.setUse3D(true);
        resideMenu.setBackground(R.color.colorPrimaryDark);
        resideMenu.attachToActivity(this);
        resideMenu.setMenuListener(menuListener);
        //valid scale factor is between 0.0f and 1.0f. leftmenu'width is 150dip.
        resideMenu.setScaleValue(0.6f);

        // create menu items;
        itemHome     = new ResideMenuItem(this, R.drawable.icon_home,     "Home");
        itemProfile  = new ResideMenuItem(this, R.drawable.icon_profile,  "Profile");
        itemCalendar = new ResideMenuItem(this, R.drawable.icon_calendar, "Calendar");
        itemSettings = new ResideMenuItem(this, R.drawable.icon_settings, "Settings");

        itemHome.setOnClickListener(this);
        itemProfile.setOnClickListener(this);
        itemCalendar.setOnClickListener(this);
        itemSettings.setOnClickListener(this);

        resideMenu.addMenuItem(itemHome, ResideMenu.DIRECTION_LEFT);
        resideMenu.addMenuItem(itemProfile, ResideMenu.DIRECTION_LEFT);
        resideMenu.addMenuItem(itemCalendar, ResideMenu.DIRECTION_RIGHT);
        resideMenu.addMenuItem(itemSettings, ResideMenu.DIRECTION_RIGHT);

        // You can disable a direction by setting ->
        // resideMenu.setSwipeDirectionDisable(ResideMenu.DIRECTION_RIGHT);

        findViewById(R.id.title_bar_left_menu).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                resideMenu.openMenu(ResideMenu.DIRECTION_LEFT);
            }
        });
        findViewById(R.id.title_bar_right_menu).setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                resideMenu.openMenu(ResideMenu.DIRECTION_RIGHT);
            }
        });
    }

    @Override
    public boolean dispatchTouchEvent(MotionEvent ev) {
        return resideMenu.dispatchTouchEvent(ev);
    }

    @Override
    public void onClick(View view) {

        if (view == itemHome){
            changeFragment(new HomeFragment());
        }else if (view == itemProfile){
            changeFragment(new ProfileFragment());
        }else if (view == itemCalendar){
            changeFragment(new CalendarFragment());
        }else if (view == itemSettings){
            changeFragment(new SettingsFragment());
        }

        resideMenu.closeMenu();
    }

    private ResideMenu.OnMenuListener menuListener = new ResideMenu.OnMenuListener() {
        @Override
        public void openMenu() {
            Toast.makeText(mContext, "Menu is opened!", Toast.LENGTH_SHORT).show();
        }

        @Override
        public void closeMenu() {
            Toast.makeText(mContext, "Menu is closed!", Toast.LENGTH_SHORT).show();
        }
    };

    private void changeFragment(Fragment targetFragment){
        resideMenu.clearIgnoredViewList();
        getSupportFragmentManager()
                .beginTransaction()
                .replace(R.id.main_fragment, targetFragment, "fragment")
                .setTransitionStyle(FragmentTransaction.TRANSIT_FRAGMENT_FADE)
                .commit();
    }

    // What good method is to access resideMenu?
    public ResideMenu getResideMenu(){
        return resideMenu;
    }
}

• Create other fragment pages like home, setting, profile, calendar
• After Finally open AndroidManifest.XML and make WelcomeActivity as launcher activity.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.wapptech.menu">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@android:style/Theme.Light.NoTitleBar">
        <activity android:name=".MenuActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

Github Link: https://github.com/Sudarshan101/ResideMenu

See Demo: https://www.youtube.com/watch?v=d9nz2M2g13I?
